209Y to BS 6500(New BS EN 50525-2-11)
Application and Description:
209Y to BS 6500(New BS EN 50525-2-11) cables are suitable for domestic premises, kitchen, office for light service or light portable apparatuses. With their special insulation and sheath compounds, these cables are adapted for apparatus in kitchen and heating and for use in zones with high temperatures (like lighting system apparatuses) without contact with warm parts and radiations. 209Y is equivalent to harmonized code H03V2V2-F.

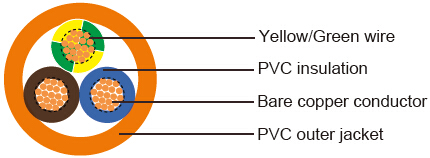

Cable Construction:
Bare copper fine wire conductor
Stranding to BS 6360 CL-5 or IEC 60228 CL-5
PVC core insulation TI3
PVC outer jacket TM3
Core Identification:
Cores: Blue, Brown
Cores: Green/Yellow, Blue, Brown
cores: Green/Yellow, Black, Brown, Blue
Cores: Green/Yellow, Brown, Black, Grey, Blue
Technical Characteristics:
Working voltage: 300/300 volts
Test voltage: 2000 volts
Flexing bending radius: 4xOverall diameter
Static bending radius: 3xOverall diameter
Flexing temperature: +5º C to +90º C
Static temperature: -40º C to +90º C
Short circuit temperature: +160º C
Flame retardant: IEC 60332.1
Insulation resistance: 20 MΩxkm
Cable Parameter:
| AWG (No of Strands/ Strand Diameter) |
No. of Cores x Nominal Cross Sectional Area #xmm² |
Nominal Thickness of Insulation mm |
Nominal Thickness of Sheath mm |
Nominal Overall Diameter mm |
Nominal Copper Weight kg/km |
Nominal Weight kg/km |
|---|---|---|---|---|---|---|
| 2092Y | ||||||
| 20(16/32) | 2x0.50 | 0.5 | 0.6 | 5 | 9.6 | 38 |
| 18(24/32) | 2x0.75 | 0.5 | 0.6 | 5.5 | 14.4 | 46 |
| 2093Y | ||||||
| 20(16/32) | 3x0.50 | 0.5 | 0.6 | 5.4 | 14.4 | 45 |
| 18(24/32) | 3x0.75 | 0.5 | 0.6 | 6 | 21.6 | 59 |
| 2094Y | ||||||
| 20(16/32) | 4x0.50 | 0.5 | 0.6 | 5.8 | 19.2 | 55 |
| 18(24/32) | 4x0.75 | 0.5 | 0.6 | 6.5 | 28.8 | 72 |
