Industrial Cables-British Standard

6181B/6182B/6183B/6184B/6185B to BS 7211







Application and Description :

6181B/6182B/6183B/6184B/6185B to BS 7211 cables are designed for fixed wiring purposes in domestic and industrial power/lighting applications. They can be installed in trunking or conduit, or may be surface mounted when used for earthing. They are suitable for use in areas (such as public and government buildings) where smoke and toxic fumes may cause a threat to life and equipment. When mechanical protection is required, they can be embedded in concrete

Cable Construction:

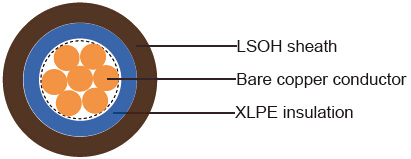

6181B/6182B/6183B/6184B/6185B to BS 72116181B/6182B/6183B/6184B/6185B to BS 7211

  • Bare copper made of strands conductor

    Stranding to IEC 60228 CL-1/2

    Thermosetting insulation, type EI 5 or type GP 8 insulation

    For 2 cores and above, the cores shall be laid up together. Centre filler may be used; the laid up cores

    may be covered by an optional extruded inner covering or separating tape

  • LSOH type LTS4 sheath

    Core Identification :

    2-core: brown and blue;

    3-core: brown, black and grey;

    4-core: blue, brown, black and grey;

    5-core: greenlyellow, blue, brown, black and grey

    • Technical Characteristics :

    Working voltage: 450/750v

    Operating temperature: -15?C to +90?C

    Insulation resistance: 10 MOxkm

    Halogen free acc. to EN 50267-2-1 / IEC 60754-1

    Smoke density acc. to EN 50268-2 / IEC 61034-2

    Corrosivity of gases acc. to EN 50267-2-2, IEC 60754-2

    Flame retardancy acc. to EN 50265-2-1, IEC 60332-1

    Cable Parameter:

    AWG
    (No of
    Strands/
    Strand
    Diameter)    		 No. of Cores x Nominal Cross Sectional Area
    #xmm²    		 Nominal Thickness of Insulation
    mm    		 Nominal Thickness of inner Covering
    mm    		 Nominal Thickness of Sheath
    mm    		 Nominal Overall Diameter lower limit
    mm    		 Nominal Overall Diameter upper limit
    mm
    6181B
    18(solid) 1x1.0 0.7 - 0.8 3.9 4.8
    18(7/26) 1x1.0 0.7 - 0.8 4 4.9
    16(solid) 1x1.5 0.7 - 0.8 4.2 5
    16(7/24) 1x1.5 0.7 - 0.8 4.3 5.2
    14(solid) 1x2.5 0.7 - 0.8 4.6 5.5
    14(7/22) 1x2.5 0.7 - 0.8 4.7 5.6
    12(solid) 1x4 0.7 - 0.9 5.2 6.3
    12(7/20) 1x4 0.7 - 0.9 5.3 6.4
    10(solid) 1x6 0.7 - 0.9 5.7 6.8
    10(7/18) 1x6 0.7 - 0.9 5.9 7.1
    8(7/16) 1x10 0.7 - 0.9 6.7 8.1
    6(7/14) 1x16 0.7 - 0.9 7.6 9.2
    4(7/12) 1x25 0.9 - 1 9.7 11.4
    2(7/10) 1x35 0.9 - 1.1 10.6 12.8
    6182B
    18(solid) 2x1.0 0.7 0.4 1.2 7.1 9.5
    18(7/26) 2x1.0 0.7 0.4 1.2 7.3 9.7
    16(solid) 2x1.5 0.7 0.4 1.2 7.6 10.1
    16(7/24) 2x1.5 0.7 0.4 1.2 7.8 10.3
    14(solid) 2x2.5 0.7 0.4 1.2 8.4 11
    14(7/22) 2x2.5 0.7 0.4 1.2 8.5 11.3
    12(solid) 2x4 0.7 0.4 1.2 9.2 12.1
    12(7/20) 2x4 0.7 0.4 1.2 9.5 12.4
    10(solid) 2x6 0.7 0.4 1.2 10.2 13.2
    10(7/18) 2x6 0.7 0.4 1.2 10.6 13.7
    8(solid) 2x10 0.7 0.4 1.4 12.1 16
    8(7/16) 2x10 0.7 0.6 1.4 12.7 16.7
    6(7/14) 2x16 0.7 0.6 1.4 14.4 18.8
    4(7/12) 2x25 0.9 0.8 1.4 17.7 23.2
    2(7/10) 2x35 0.9 0.8 1.6 20 26
    AWG
    (No of
    Strands/
    Strand
    Diameter)    		 No. of Cores x Nominal Cross Sectional Area
    #xmm²    		 Nominal Thickness of Insulation
    mm    		 Nominal Thickness of inner Covering
    mm    		 Nominal Thickness of Sheath
    mm    		 Nominal Overall Diameter lower limit
    mm    		 Nominal Overall Diameter upper limit
    mm
    6183B
    18(solid) 3x1.0 0.7 0.4 1.2 7.5 10.0
    18(7/26) 3x1.0 0.7 0.4 1.2 7.7 10.2
    16(solid) 3x1.5 0.7 0.4 1.2 8.0 10.6
    16(7/24) 3x1.5 0.7 0.4 1.2 8.2 10.9
    14(solid) 3x2.5 0.7 0.4 1.2 8.8 11.6
    14(7/22) 3x2.5 0.7 0.4 1.2 9.0 11.9
    12(solid) 3x4 0.7 0.4 1.2 9.8 12.7
    12(7/20) 3x4 0.7 0.4 1.2 10.1 13.1
    10(solid) 3x6 0.7 0.4 1.2 11.2 14.4
    10(7/18) 3x6 0.7 0.4 1.4 11.6 15.0
    8(solid) 3x10 0.7 0.6 1.4 12.8 16.9
    8(7/16) 3x10 0.7 0.6 1.4 13.5 17.7
    6(7/14) 3x16 0.7 0.6 1.4 15.3 19.9
    4(7/12) 3x25 0.9 0.8 1.4 18.9 24.6
    2(7/10) 3x35 0.9 0.8 1.6 2 1.3 27.6
    6184B
    18(solid) 4x1.0 0.7 0.4 1.2 8.1 10.7
    18(7/26) 4x1.0 0.7 0.4 1.2 8.3 11.0
    16(solid) 4x1.5 0.7 0.4 1.2 8.7 11.4
    16(7/24) 4x1.5 0.7 0.4 1.2 8.9 11.7
    14(solid) 4x2.5 0.7 0.4 1.2 9.6 12.6
    14(7/22) 4x2.5 0.7 0.4 1.2 9.9 12.8
    12(solid) 4x4 0.7 0.4 1.2 10.7 13.8
    12(7/20) 4x4 0.7 0.4 1.2 11.0 14.2
    10(solid) 4x6 0.7 0.4 1.4 12.2 16.1
    10(7/18) 4x6 0.7 0.6 1.4 12.7 16.7
    8(solid) 4x10 0.7 0.6 1.4 14.1 18.4
    8(7/16) 4x10 0.7 0.6 1.4 14.8 19.2
    6(7/14) 4x16 0.7 0.6 1.4 16.9 21.8
    4(7/12) 4x25 0.9 0.8 1.6 21.2 27.5
    2(7/10) 4x35 0.9 1.0 1.6 23.5 30.7
    AWG
    (No of
    Strands/
    Strand
    Diameter)    		 No. of Cores x Nominal Cross Sectional Area
    #xmm²    		 Nominal Thickness of Insulation
    mm    		 Nominal Thickness of inner Covering
    mm    		 Nominal Thickness of Sheath
    mm    		 Nominal Overall Diameter lower limit
    mm    		 Nominal Overall Diameter upper limit
    mm
    6185B
    18(solid) 5x1.0 0.7 0.4 1.2 8.8 11.5
    18(7/26) 5x1.0 0.7 0.4 1.2 9.0 11.9
    16(solid) 5x1.5 0.7 0.4 1.2 9.4 12.3
    16(7/24) 5x1.5 0.7 0.4 1.2 9.7 12.6
    14(solid) 5x2.5 0.7 0.4 1.2 10.5 13.6
    14(7/22) 5x2.5 0.7 0.4 1.2 10.7 13.9
    12(solid) 5x4 0.7 0.4 1.4 12.0 15.9
    12(7/20) 5x4 0.7 0.6 1.4 12.4 16.4
    10(solid) 5x6 0.7 0.6 1.4 13.3 17.5
    10(7/18) 5x6 0.7 0.6 1.4 13.8 18.1
    8(solid) 5x10 0.7 0.6 1.4 15.4 20.0
    8(7/16) 5x10 0.7 0.6 1.4 16.2 20.9
    6(7/14) 5x16 0.7 0.8 1.4 18.5 24.2
    4(7/12) 5x25 0.9 1.0 1.6 23.3 30.5
    2(7/10) 5x35 0.9 1.0 1.6 25.9 33.6
