Industrial Cables-British Standard

6181Y to BS 6004







Application and Description:

6181Y to BS 6004 cables are designed for surface wiring where there is little risk of mechanical damage and are suitable for use in electrical installations such as power and lighting.

Cable Construction:

6181Y to BS 60046181Y to BS 6004

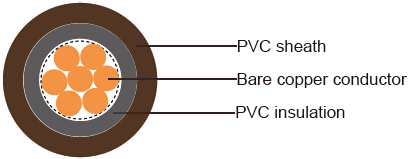

  • Bare copper conductor

    Solid to BS 6360 CL-1 or IEC 60228 CL-1;

  • stranding to BS 6360 CL-2 or IEC 60228 CL-2 1.0mm²- 2.5mm CL-1 – circular solid 4mm² and above - CL-2 –

  • stranded circular or circular compacted

    PVC insulation Type TI1 to BS7655

    PVC sheath Type 6 to BS7655

  • Core Identification:

    Black, Blue, Brown

    Technical Characteristics:

  • Working voltage: 300/500V

    Minimum bending radius: 3xoverall diameter

    Operating temperature: -15º C to +70º C

    Insulation resistance: 10 MΩxkm

  • Flame retardant: IEC 60332.1

  • Cable Parameter:

    AWG
    (No of Strands/
    Strand
    Diameter)
    No. of Cores x Nominal Cross Sectional Area
    #xmm²
    Nominal Thickness
    of Insulation
    mm
    Nominal Thickness  of Sheath
    mm
    Nominal Overall Diameter
    mm
    Nominal Weight kg/km
    18 1x1 0.6 0.8 4.5 27
    16 1x1.5 0.7 0.8 4.9 36
    14 1x2.5 0.8 0.8 5.8 52
    12(7/20) 1x4 0.9 0.9 6.8 76
    10(7/18) 1x6 0.8 0.9 7.4 100
    8(7/16) 1x10 1 0.9 8.8 160
    6(7/14) 1x16 1 1 10.5 230
    4(7/12) 1x25 1.2 1.1 12.5 340
    2(7/10) 1x35 1.2 1.1 13.5 440
