Industrial Cables-British Standard

6381B to BS7211 & IEC 60502







Application and Description:

6381B to BS7211 & IEC 60502 cables are suitable for D.C. power supplies on telecom equipment and power applications where flexibility is required. 6381B to BS7211 & IEC 60502 cables produce no corrosive gases when burnt which is important where electronic equipment is installed.

Cable Construction:

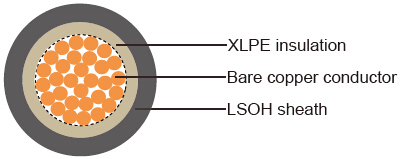

6381B to BS7211 & IEC 605026381B to BS7211 & IEC 60502

  • Bare copper conductor

    Stranding to BS6360 CL-5 or IEC60228 CL-5

    XLPE(Cross-Linked Polyethylene), GP8 insulation

    LSOH(Low Smoke Zero Halogen) LTS4 sheath

  • Sheath/Core Identification

  • Blue (Blue), Grey (Grey), Green/Yellow (Green/Yellow), Brown (Brown), Special colours to order

  • Technical Characteristics :

      Working voltage: 600/1000V

      Minimum bending radius: up to 50 mm² : 3xoverall diameter,

      70mm² and above: - 4xoverall diameter

      - Operating temperature: 0º C to +90º C

      Insulation resistance: 10 MΩxkm

      Flame retardant: IEC 60332.1, BS4066 Part 1

    Cable Parameter:

    AWG
    (No of Strands/
    Strand Diameter)
    No. of Cores x Nominal Cross Sectional Area
    #xmm²
    Nominal Thickness
    of Insulation
    mm
    Nominal Thickness of Sheath
    mm
    Nominal Overall Diameter
    mm
    Nominal Weight kg/km
    16(30/30) 1x1.5 0.9 0.8 5.2 42
    14(50/30) 1x2.5 0.9 0.8 5.7 54
    12(56/28) 1x4 1 0.9 6.6 77
    10(84/28) 1x6 1.1 0.9 7.3 102
    8(80/26) 1x10 1.2 1 8.6 160
    6(128/26) 1x16 1.2 1 9.6 210
    4(200/26) 1x25 1.4 1.1 11.5 320
    2(280/26) 1x35 1.4 1.1 12.8 420
    1(400/26) 1x50 1.4 1.4 14.9 590
    2/0(356/24) 1x70 1.4 1.4 17.2 810
    3/0(485/24) 1x95 1.6 1.5 18.6 1020
    4/0(614/24) 1x120 1.6 1.8 20.8 1285
    300MCM (765/24) 1x150 1.8 1.8 23.1 1610
    350MCM (944/24) 1x185 2 1.8 25.3 1940
    500MCM(1225/24) 1x240 2.2 1.8 27.8 2480
    -(1525/24) 1x300 2.4 2 31.2 3050
    -(2013/24) 1x400 2.6 2.1 35.3 4035
    -(1769/23) 1x500 2.8 2.2 38.8 4970
    -(2257/23) 1x630 2.8 2.4 43.8 6510
