Industrial Cables-British Standard
6491X/6491X HR to BS 6004(New BS EN 50525-2-31)
Application and Description:
6491X/6491X HR to BS 6004(New BS EN 50525-2-31) cables are designed for use as fixed wiring in domestic, Industrial power and lighting applications such as light fittings, appliances, switchgear and control gear, they can be used in conduit or trunking or surface mounted when used as an earth. 6491X is equivalent to H07V-U/H07V-R/H07V-K.The heat- resistant version is ideal for use in installation which are subject to direct contact with high temperature equipments (e.g. varnishing machines and drying towers etc.).
Cable Construction:
Bare copper made of solid/strands conductor
Solid to BS 6360 CL-1 or IEC 60228 CL-1(H07V-U)
Stranding to BS 6360 CL-2 or IEC 60228 CL-2(H07V-R)
Stranding to BS 6360 CL-5 or IEC 60228 CL-5(H07V-K)

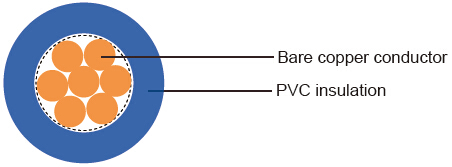

Special PVC TI1/TI3(for 6491X HR ) core insulation
Core Identification:
Green/Yellow, Black, Blue, Brown, Red, White, Grey, Violet
Technical Characteristics:
Working voltage: 450/750 volts
Test voltage: 2500 volts
Minimum bending radius:
Up to 10mm²: 3xoverall diameter
10mm² to 25mm²: 4xoverall diameter
Above 25mm²: 5xoverall diameter
Operating temperature: -0º C to +70º C/105 º C(for 6491X HR)
Short circuit temperature: +160º C
Flame retardant: IEC 60332.1
Insulation resistance: 10 MΩxkm
Cable Parameter:
| AWG (No of Strands/ Strand Diameter) |
No. of Cores x Nominal Cross Sectional Area #xmm² |
Nominal Thickness of Insulation mm |
Nominal Overall Diameter mm |
Nominal Copper Weight kg/km |
Nominal Weight kg/km |
|---|---|---|---|---|---|
| 16(solid) | 1x1.5 | 0.7 | 2.9 | 14.4 | 21 |
| 14(solid) | 1x2.5 | 0.8 | 3.5 | 24 | 33 |
| 12(solid) | 1x4 | 0.8 | 3.9 | 38.0 | 49 |
| 10(solid) | 1x6 | 0.8 | 4.5 | 58.0 | 69 |
| 8(solid) | 1x10 | 1.0 | 5.7 | 96 | 115 |
| 16(7/24) | 1x1.5 | 0.7 | 3.0 | 14.4 | 23 |
| 14(7/22) | 1x2.5 | 0.8 | 3.6 | 24 | 35 |
| 12(7/20) | 1x4 | 0.8 | 4.2 | 39 | 51 |
| 10(7/18) | 1x6 | 0.8 | 4.7 | 58 | 71 |
| 8(7/16) | 1x10 | 1 | 6.1 | 96 | 120 |
| 6(7/14) | 1x16 | 1 | 7.2 | 154 | 170 |
| 4(7/12) | 1x25 | 1.2 | 8.4 | 240 | 260 |
| 2(7/10) | 1x35 | 1.2 | 9.5 | 336 | 350 |
| 1(19/13) | 1x50 | 1.4 | 11.3 | 480 | 480 |
| 2/0(19/11) | 1x70 | 1.4 | 12.6 | 672 | 680 |
| 3/0(19/10) | 1x95 | 1.6 | 14.7 | 912 | 930 |
| 4/0(37/12) | 1x120 | 1.6 | 16.2 | 1152 | 1160 |
| AWG (No of Strands/ Strand Diameter) |
No. of Cores x Nominal Cross Sectional Area #xmm² |
Nominal Thickness of Insulation mm |
Nominal Overall Diameter mm |
Nominal Copper Weight kg/km |
Nominal Weight kg/km |
|---|---|---|---|---|---|
| 300MCM(37/11) | 1x150 | 1.8 | 18.1 | 1440 | 1430 |
| 350MCM(37/10) | 1x185 | 2.0 | 20.2 | 1776 | 1780 |
| 500MCM(61/11) | 1x240 | 2.2 | 22.9 | 2304 | 2360 |
| -(61/10) | 1x300 | 2.4 | 24.5 | 2980 | 2940 |
| -(61/9) | 1x400 | 2.6 | 27.5 | 3765 | 3740 |
| 16(30/30) | 1x1.5 | 0.7 | 3.1 | 14.4 | 20 |
| 14(50/30) | 1x2.5 | 0.8 | 3.6 | 24 | 31 |
| 12(56/28) | 1x4 | 0.8 | 4.3 | 38.0 | 48 |
| 10(84/28) | 1x6 | 0.8 | 4.9 | 58.0 | 69 |
| 8(80/26) | 1x10 | 1.0 | 6.4 | 96 | 121 |
| 6(128/26) | 1x16 | 1.0 | 8.1 | 154 | 211 |
| 4 (200/26) | 1x25 | 1.2 | 9.8 | 240 | 303 |
| 2 (280/26) | 1x35 | 1.2 | 11.1 | 336 | 417 |
| 1 (400/26) | 1x50 | 1.4 | 13.1 | 480 | 539 |
| 2/0 (356/24) | 1x70 | 1.4 | 15.5 | 672 | 730 |
| 3/0 (485/24) | 1x95 | 1.6 | 17.2 | 912 | 900 |
| 4/0 (614/24) | 1x120 | 1.6 | 19.7 | 1152 | 1135 |
| 300MCM (765/24) | 1x150 | 1.8 | 21.3 | 1440 | 1410 |
| 350MCM (944/24) | 1x185 | 2.0 | 23.4 | 1776 | 1845 |
| 500MCM(1225/24) | 1x240 | 2.2 | 27.1 | 2304 | 2270 |
