Composite Cables

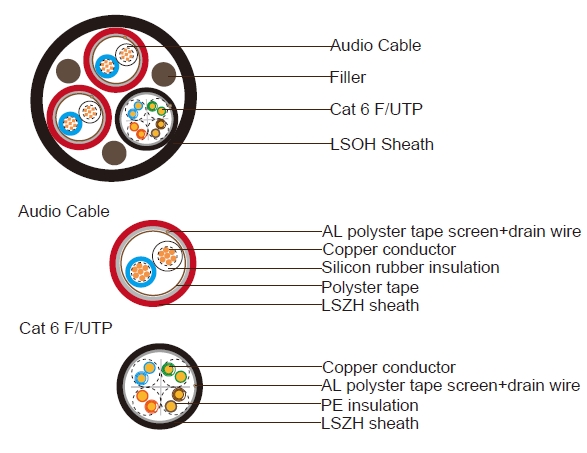

2X(2C1.5mm2) Audio Cable + Cat6 F/UTP LSZH Sheathed Unarmoured Composite Cable
Construction:
Conductor:1.5mm2 Stranded copper wire, class 5 to IEC60228.
Insulation:Fire resistant silicone rubber compound.Nominal thickness 0.8mm.
Insulation Color:White and blue.
Screen:Alumminum tape with tinned copper drain wire.
Sheath:LSZH sheath. Nominal thickness 1.0 mm.
Sheath Color:Red.
General Standard:Basic design to EN50288-7.
Cat 6 F/UTP
Conductor:24 AWG stranded plain copper.
Insulation:PE material. Nominal diameter is 0.97mm.
Insulation Color:White-orange,Orange;White-blue,Blue;
White-green,Green;White-brown,Brown.
Screen:Alumminum tape with tinned copper drain wire.
Sheath:LSZH sheath. Nominal overall diameter is 6.5 mm.
Sheath Color:Black or Grey or Blue. Other colors also available upon request.
Applications:IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T;IEEE 802.5 16 MB; ISDN; TPDDI; ATM.
Standards:ISO/IEC 11801, IEC 61156-5,EN 50173,ANSI/TIA 568B.
Element Assembly
Filler:PP material .
Wrapping Tape:Polyester tape or woven tape.
Outer Sheath:High flexible LSZH. Nominal thickness 1.8mm.
Sheath Color:Black. Other colors also available upon request.
Electrical and Physical Properties@20°C:
Audio Cable
Max.Electrical Resistance: 12.3Ohm/km
Min. Insulation Resistance: 1000 MOhm/km
Operating Temperature: -20°C/+90°C
Voltage rating: 300/500V
Insulation spark test: 7000 V r.m.s./H.F.
Max. Attenuation: 0.88 dB/km @800HZ
Max. Inductance:0.75mH/km
Cat6 F/UTP (1-250MHz)
Max.Electrical Resistance: 93.8 Ohm/km
Min.Insulation Resistance: 2000 MOhm/km
Operating Temperature: -20°C/+70°C
Max.Resistance Unbalance: 5%
Max. Mutual Capacitance: 5.6nF/100m
Max. Capacitance Unbalance: 330pF/100m
Characteristic Impedance : 100 ± 15 (1-250MHz)
Nominal Velocity of Propagation: 69%
Max. Propagation Delay : 536ns/100m@100MHz
Max.Propagation Delay skew : 45ns/100m(1-125MHz)
Test voltage (DC, 1 min)
Core/Core : 1000V
Fire Performance:
Audio Cable
Fire Resistance : IEC60331
Flame Retardance : IEC60332-1-2
Fire Propagation : IEC60332-3-22
Halogen Free:IEC60754-1/2
Low Smoke Capacity:IEC61034-1/2
Oxygen Index :ISO 4589-2
Temperature Index :ISO 4589-3
Cat6 F/UTP
Flame Retardance : IEC60332-1-2
Fire Propagation : IEC60332-3-22
Halogen Free:IEC60754-1/2
Low Smoke Capacity:IEC61034-1/2
Oxygen Index :ISO 4589-2
Temperature Index :ISO 4589-3
Element Assembly
Flame Retardance : IEC60332-1-2
Fire Propagation : IEC60332-3-22
Halogen Free:IEC60754-1/2
Low Smoke Capacity:IEC61034-1/2
Oxygen Index :ISO 4589-2
Temperature Index :ISO 4589-3
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
