Composite Cables
1x RG59+3x3 Power Cable+2x1x2x24AWG Data Pairs SWB LSZH Sheathed Composite Cable
Application:
CCTV composite cable armoured CCTV composite cable is mainly used in the CCTV application connection. It can
be used to connect the CCTV control system to the CCTV cameras. The steel armour braiding provides added
protection to the cable while the LSZH outer jacket provides flame-retardant capability in the event of a fire
breakout.

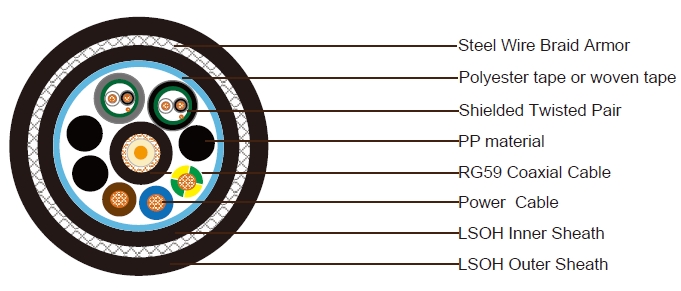

Construction:
1x75Ohm RG59 Coaxial Cable( in the center of the cable core)
Conductor:0.58mm Solid copper conductor
Insulation:Polyethylene. Thickness 1.56mm
Shield:Braid of bare copper wire. Coverage ≥ 95%
Sheath:LSZH sheath. Nominal outer diameter 6.15mm
Sheath Color:Black
2x1x2x24AWG Shielded Twisted Pair (around coaxial cable)
Conductor:7/0.2mm Stranded tinned copper
Insulation:PVC material. Thickness 0.4mm
Insulation Color:Black and white
Shield:Aluminium polyester tape
Drain Wire:24 AWG stranded tinned copper drain wire
Sheath:LSZH sheath. Nominal outer diameter 4.8mm. Thickness 0.76mm
Sheath Color:Black and Grey
3x1.5mm² Power Cable ( around coaxial cable)
Conductor:1.5mm² Stranded tinned copper wire
Insulation:XLPE. Nominal outer diameter 3.0mm
Insultion Color:Blue, Brown and Green/Yellow
Element Assembly
Filler:PE or PP material
Wrapping Tape:Polyester tape or woven tape
Inner Sheath:Black LSZH, thickness 0.8mm
Armor:Steel wire braid, coverage 85%
Outer Sheath:LSZH, thickness 1.5mm, nominal outer diameter 21.5±2.0mm
Sheath Color:Black
Electrical and Physical Properties @20°C:
Coaxial Cable
Impedance: 75±3Ohm (@1MHz)
Max. Attenuation: 7.5dB/100m @50MHz
Power Cable
Electrical Resistance: 12.1Ohm/km
Insulation Resistance: ≥5500 MOhmxkm Data Pairs
Electrical Resistance: 90Ohm/km
Insulation Resistance: ≥1000 MOhmxkm
Element Assembly:
Min Bending Radius: 420mm
Operating Temperature: -35°C/+80°C
Fire Performance:
Low Smoke Capacity:IEC61034-1/2
Halogen Free:IEC60754-1/2
Flame Propagation: IEC60332
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
