Composite Cables
1x2x2.5mm² Power Cable +9x1x2x1.0mm² Control Cable SWA PVC Sheathed Composite Cable

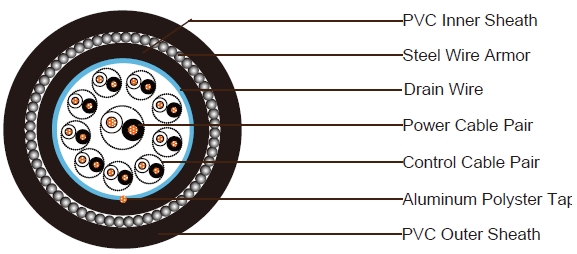

Construction:
1x2x2.5mm² Power Cable
Conductor:2.5mm² annealed copper
Insulation:XLPE material.
Insulation Color:Black and white
9x1x2x1.0mm² Control Cable
Conductor:1.0mm² annealed copper
Insulation:PE material.
Insulation Color:Black and white with pair number
Overall Screen:Aluminium polyester tape with 24 AWG stranded tinned copper drain wire
Element Assembly
Shield:Aluminium polyester tape
Drain Wire:24 AWG stranded tinned copper drain wire
Bedding:PVC
Armour:1.6mm Steel wire armor.
Sheath:PVC sheath. Nominal outer diameter 31.0mm. Thickness 2.0mm
Sheath Color:Black
Cable Weight:1415 kg/km
Electrical and Physical Properties @20°C:
Power Cable
Max. Conductor Resistance: 7.41Ohm/km at 20ºC
Control Cable
Max. Conductor Resistance: 18.5Ohm/km at 20ºC
Operating Temperature: -20°C/+90°C
Voltage Rating: 600/1000V
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
