Composite Cables
1x RG59+7x1x2x22AWG Pairs Data Cable+3xPower Cable SWA LSZH Sheathed Composite Cable
Application:
CCTV composite cable armoured CCTV composite cable is mainly used in the CCTV application connection. It can
be used to connect the CCTV control system to the CCTV cameras. The steel armour braiding provides added
protection to the cable while the LSZH outer jacket provides flame-retardant capability in the event of a fire
breakout.

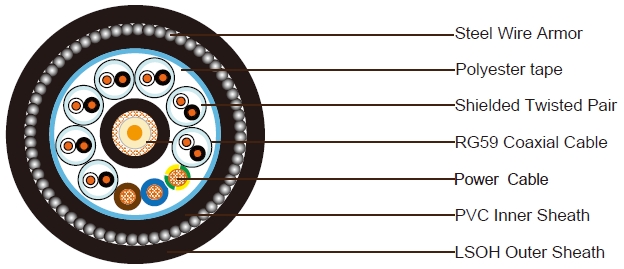

Construction:
1x75Ohm RG59 Coaxial Cable
Conductor:0.58mm Solid copper conductor
Insulation:Polyethylene. Thickness 1.56mm
Shield:Braid of bare copper wire. Coverage ≥ 95%
Sheath:PVC sheath. Nominal outer diameter 6.15mm
Sheath Color:Black
7x1x2x22 AWG Shielded Twisted Pair Data Cables
Conductor:22AWG Stranded tinned copper
Insulation:PE material. Thickness 0.6mm
Insulation Color:Black and white with numbering
Individual Shield:Aluminium polyester tape with stranded tinned copper drain wire
3x16AWG Power Cable
Conductor:16AWG Stranded tinned copper wire
Insulation:XLPE. Thickness 0.7mm
Insultion Color:Blue, Brown and Green/Yellow
Element Assembly
Filler:PP material if necessary
Wrapping Tape:Polyester tape
Inner Sheath:1.2mm PVC compound
Armor:Galvanized steel wire
Outer Sheath:An outer protection of extruded UV resisting, anti-rodent and anti-termite LSZH compound is
applied over armor. Thickness: 2.0mm. Nominal outer diameter is 28.0mm.
Sheath Color:Black
Cable Weight:510kg/km
Physical Characteristic:
Min Bending Radius: 560mm
Operating Temperature: -30°C/+70°C
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
