Composite Cables
1x RG59 +2x1x2x22AWG Data Cable SWB LSZH Sheathed Composite Cable
Application:
CCTV composite cable armoured CCTV composite cable is mainly used in the CCTV application connection. It can
be used to connect the CCTV control system to the CCTV cameras. The steel armour braiding provides added
protection to the cable while the LSZH outer jacket provides flame-retardant capability in the event of a fire
breakout.
Construction:
1x75Ohm RG59 Coaxial Cable
Conductor:0.58mm Solid copper conductor
Insulation:Polyethylene. Thickness 1.56mm
Shield:Braid of bare copper wire. Coverage ≥ 85%
Sheath:LSZH sheath. Nominal outer diameter 6.2mm
Sheath Color:Black
2 Pair 22AWG Data Cable
Conductor:7/0.254mm Stranded tinned copper
Insulation:PVC material. Thickness 0.4mm
Insulation Color:Black and white
Shield:Aluminium polyester tape
Drain Wire:7/0.2mm stranded tinned copper drain wire
Sheath:LSZH sheath. Nominal outer diameter 4.8mm.
Sheath Color:Black

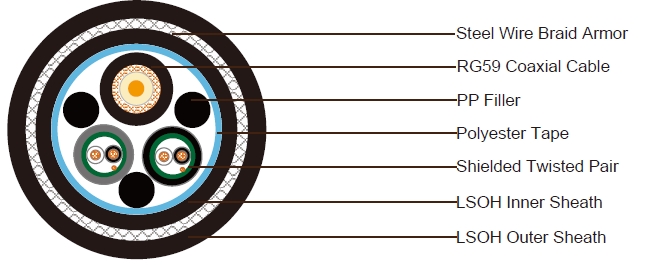

Element Assembly
Filler:PP material (around coaxial cable)
Wrapping Tape:Polyester tape
Inner Sheath:Black LSZH, thickness 0.8mm
Armor:Steel wire braid,coverage 95%
Outer Sheath:LSZH, thickness 1.5mm, nominal outer diameter is 18.5mm
Sheath Color:Black
Electrical and Physical Properties @20°C:
Coaxial Cable
Impedance: 75±3Ohm (@1MHz)
Nominal Attenuation: 8.2dB/100m @50MHz
Data Cable
Nominal Conductor Resistance @20°C: 48.4 Ohm/km
Fire Performance:
Flame Propagation: IEC60332
Low Smoke Capacity:IEC61034-1/2
Halogen Free:IEC60754-1/2
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
