Composite Cables
1xRG59+4 Core 62.5 Fiber Cable+3xPower Cable+2x1x2x24AWG Pairs SWB LSZH Sheathed Composite
Cable
Application:
CCTV composite cable armoured CCTV composite cable is mainly used in the CCTV application connection. It can
be used to connect the CCTV control system to the CCTV cameras. The steel armour braiding provides added
protection to the cable while the LSZH outer jacket provides flame-retardant capability in the event of a fire
breakout.
Construction:

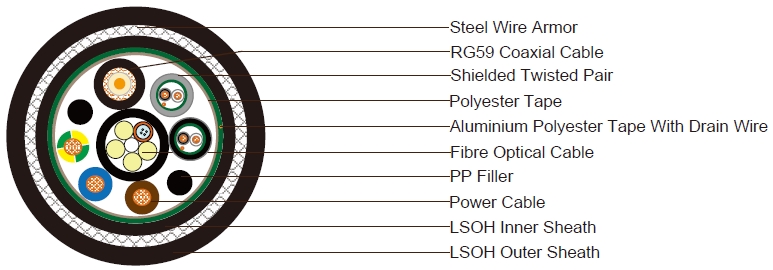

1x75Ohm RG59 Coaxial Cable
Conductor:0.58mm Solid copper conductor
Insulation:Polyethylene. Thickness 1.56mm
Shield:Braid of bare copper wire. Coverage ≥ 95%
Sheath:LSZH SHF1)sheath. Norminal outer diameter 6.2mm
Sheath Color:Black
4 core 62.5/125 Multi Loose Tube Type Fiber Cable
Fibers:4Cx62.5/125
Central Member:Galvanized steel wire
Sheath:Nominal outer diameter 9.6mm
Sheath Color:Black
2x1x2x24 AWG Shielded Twisted Pair ( around coaxial cable)
Conductor:7/0.2mm Stranded tinned copper
Insulation:PVC material. Thickness 0.47mm
Insulation Color:Black and white with pair number
Shield:Aluminium polyester tape with 0.5mm² stranded tinned copper drain wire. Nominal outer diameter 3.5mm
Sheath:LSZH (SHF1) sheath. Norminal outer diameter 5.2mm
3x2.5mm² Power Cable
Conductor:2.5mm² Stranded tinned copper wire
Insulation:XLPE. Thickness 0.85mm. Outer diameter 3.6mm
Insultion Color:Blue, Brown and Green/Yellow
Element Assembly
Filler:PP material around cable core
Wrapping Tape:Polyester tape
Shield:Aluminium polyester tape with 0.5mm² tinned copper drain wire
Inner Sheath:Black LSZH (SHF1) , thickness 1.0-1.2mm
Armor:Steel wire braid,coverage 85%
Outer Sheath:LSZH (SHF1), thickness 1.8-2.0mm. norminal outer diameter 28.5mm
Sheath Color:Black
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
