Composite Cables
1xRG59+3x3 Power Cable+2x1x2x24AWG Shielded Control Cable Unarmored LSZH Sheathed Composite Cable
Application:
CCTV composite cable armoured CCTV composite cable is mainly used in the CCTV application connection. It can
be used to connect the CCTV control system to the CCTV cameras. The steel armour braiding provides added
protection to the cable while the LSZH outer jacket provides flame-retardant capability in the event of a fire
breakout.

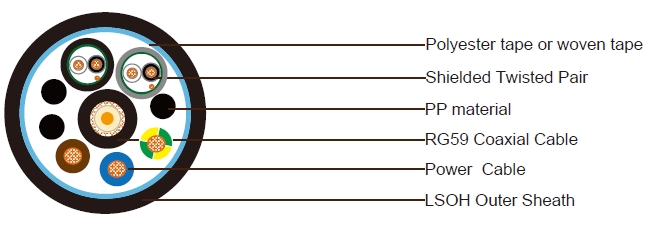

Construction:
1x75Ohm RG59 Coaxial Cable
Conductor:0.58mm Solid copper conductor
Insulation:Polyethylene. Thickness 1.56mm
Shield:Braid of bare copper wire. Coverage ≥ 95%
Sheath:LSZH sheath. Nominal outer diameter 6.15mm
Sheath Color:Black
2x1x2x24 AWG Shielded Control Cable
Conductor:7/0.2mm Stranded tinned copper
Insulation:PVC material. Thickness 0.4mm
Insulation Color:White and black
Shield:Aluminium polyester tape with 24 AWG stranded tinned copper drain wire
Sheath:LSZH sheath. Nominal outer diameter 4.8mm. Thickness: 0.76mm
Sheath Color:Black and Grey
3x3mm² Power Cable
Conductor:3mm² Stranded tinned copper wire to IEC 60228 Class 2 or BS 6360
Insulation:XLPE, Thickness 0.66mm. Outer diameter 3.63mm
Insultion Color:Blue, Brown and Green/Yellow
Element Assembly
Filler:PP, PVC or PE
Wrapping Tape:Polyester tape
Outer Sheath:LSZH, thickness 1.2mm, nominal outer diameter is 18.5mm
Sheath Color:Black
Physical Characteristic:
Min Bending Radius: 200mm
Operating Temperature: -35°C/+90°C
Fire Performance:
Flame Retardant: IEC60332 part 1 & 2
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
