Composite Cables
1x RG59 + 3x2.5 Power Cable + 2x1x2x24AWG Data Pairs SWB LSZH Sheathed Fire Resistant & Mud
Resistant Composite Cable

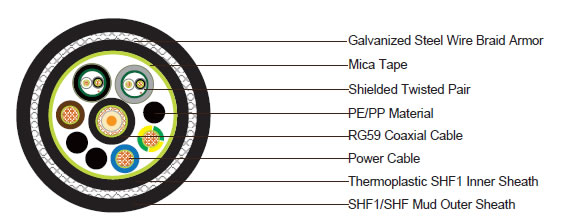

Construction:
1x75Ohm RG59 Coaxial Cable
Conductor:0.58mm Solid copper conductor
Insulation:Polyethylene. Thickness 1.56mm
Shield:Braid of bare copper wire. Coverage ≥ 95%
Fire Barrier:Mica tape
Sheath:FRLSZH sheath. Nominal outer diameter 6.7mm
Sheath Color:Black
2x1x2x24AWG Shielded Twisted Pair (around coaxial cable)
Conductor:7/0.2mm Stranded tinned copper
Insulation:XLPE. Thickness 0.7mm
Fire Barrier:Mica tape
Insulation Color:Black and white
Shield :Aluminium polyester tape
Drain Wire:24 AWG stranded tinned copper drain wire
Sheath:FRLSZH sheath. Nominal outer diameter 8.5mm. Thickness 0.8mm
Sheath Color:Black
3x2.5mm² Power Cable( around coaxial cable)
Conductor:2.5mm² Stranded tinned copper wire
Fire Barrier:Mica tape
Insulation:XLPE. Nominal outer diameter 4.2mm
Insultion Color:Blue, Brown and Green/Yellow
Element Assembly
Inner Sheath:PE or PP material
Fire Barrier:Mica tape
Inner Sheath:Thermoplastic SHF1, black, thickness 1.5mm
Armor:Galvanized steel wire braid, coverage 95%
Outer Sheath:SHF1/SHF Mud, thickness 1.5mm, nominal outer diameter 31.0±2.0mm
Sheath Color:Black
Electrical and Physical Properties @20°C:
Coaxial Cable
Impedance: 75±3Ohm (@1MHz)
Max. Attenuation: 7.5dB/100m @50MHz
Power Cable
Electrical Resistance: 12.1Ohm/km
Insulation Resistance: ≥5500 MOhmxkm
Data Pairs
Electrical Resistance: 90Ohm/km
Insulation Resistance:≥1000 MOhmxkm
Element Assembly:
Min Bending Radius: 420mm
Operating Temperature:-30°C/+80°C
Fire Performance:
Low Smoke Capacity: IEC61034-1/2
Halogen Free: IEC60754-1/2
Flame Propagation:IEC60332
Fire Resistant:IEC60331
Mud Resistant:NEK606
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
