Composite Cables
Fire Resistant, Unarmored 20 Conductors UV Resistant, Flame Retardant LSZH Composite Cable

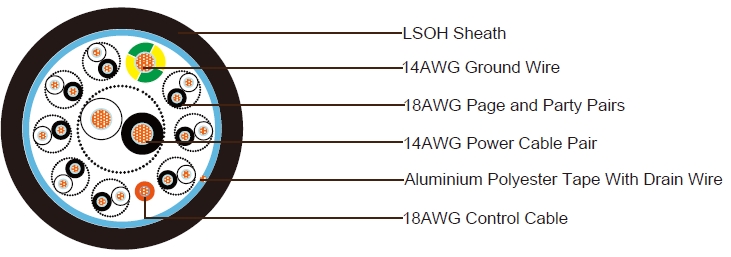

Construction:
1 Pair Power cable and 1 ground wire
Conductor:14AWG (19/0.361mm) annealed copper
Fire Barrier:Mica/Glass Tape
Insulation:XLPE material. Thickness 0.7mm
Insulation Color:Black and white
Ground wire color:Yellow-Green
8 Party Line and Spare Pair, 1 control wire
Conductor:18AWG (19/0.254mm) annealed copper
Fire Barrier:Mica/Glass Tape
Insulation:XLPE material. Thickness 0.7mm
Insulation Pair Color:Black & White with Pair Number
Control wire color:Orange
Element Assembly
Core make-up:The power pair, ground wire, Party Line and Spare Pair, and control wire are twistedtogether.
Fillers will be used if necessary.
Binder tape:The polyester tape is wrapped over the cable cores
Sheath:UV Resistant, Flame Retardant LSZH is applied over armour.. Thickness 1.5mm, Overall diameter
29.5±2.0mm
Sheath Color:Black
Cable Weight:566 kg/km
Electrical and Physical Properties @20°C:
Power Pair, Ground Wire
Max. Conductor Resistance: 8.9Ohm/km at 20ºC
Insulation Resistance: ≥1000 MOhmxkm
Party Line and Spare Pair, Control Wire
Max. Conductor Resistance: 17.9Ohm/km at 20ºC
Insulation Resistance: ≥1000 MOhmxkm Operating Temperature: -20°C/+90°C
Voltage Rating: 600/1000V
Fire Characteristics:
Fire Resistance: IEC 60331
Flame Propagation: IEC60332-1 & IEC60332-3C
Low Smoke Capacity:IEC61034-1/2
Halogen Free:IEC60754-1/2
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
