TUNNEL CABLES |
 |
||||||||
 |
||||||||||
|
||||||||||
TUNNEL CABLES
(N)SHöU
Application
For use in open-cast mining and quarries and similar plants. Also suitable for laying alongside conveyor belts on
material handing equipment. It can be used for tunneling sites and similar applications.
STANDARDS
construction |
DIN VDE 0250-812 |
General Requirements |
DIN VDE 0250-1 |
Guide Use |
DIN VDE 0298-3 |
Electrical Tests |
DIN VDE 0472-501, 503, 508 |
Non-Electrical Tests |
DIN VDE 0472-401. 402,602,303, 615 |
Under Fire Condition Tests |
DIN VDE 0472-803, 804 |
Flame Retardant |
VDE 0482-332-1-2,DIN EN 60332-1-2,IEC 60332-1 |
Oil Resistant |
HD/EN/IEC 60811-2-1.,DIN VDE0473-811-2-1 |

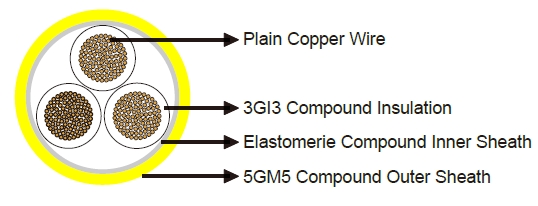

CABLE CONSTRUCTION
conductor |
Electrolytic stranded plain copper wire DIN VDE 0295 Class 5 |
Insulation |
All cores are insulated with 3Gl3 compound |
Lay Up |
All cores are laid up in contact with each other and intersititial ground cores |
Inner Sheath |
Special extruded elastomeric compound |
Outer sheath |
Heavy-duty elastomer outer sheath 5GM5.Yellow or black. |
Technical Characteristics
Rated Voltage |
0.6 / 1 KV |
Max.Permissible Operating Voltage AC |
0.7 / 1.2 KV |
Max.Permissible Operating Voltage DC |
0.9 / 1.8 KV |
AC Test Voltage |
3KV |
Min Bending Radius Current Carrying |
Acc. to DIN VDE 0298 part 3 |
capacity |
According to DIN VDE0298, Part 4 |
Working Temperature |
|
Fixed |
-40°C-+80°C |
Mobile |
-25°C-+80°C |
Max.Tensile Load Of cable |
15N/mm² |
Dimensions And Weight
Cross Section (mm²) |
Overall Diameter |
Appro. Weight (kg/km) |
3×1.5 |
9.7-10.3 |
145 |
3×2.5 |
11.2-12.8 |
220 |
3×4 |
12.5-14.1 |
300 |
3×6 |
13.2-15.0 |
380 |
3×10 |
16.6-18.6 |
590 |
3×16 |
19.5-21.0 |
797 |
3×25 |
22.9-24.9 |
1206 |
3×35 |
24.9-27.9 |
1670 |
3×50 |
29.4-33.0 |
2195 |
3×70 |
34.8-37.8 |
3124 |
3×95 |
40.9-43.9 |
4100 |
3×120 |
43.4-47.7 |
4730 |
3×150 |
47.8-54.0 |
5916 |
3×185 |
53.1-58.6 |
7270 |
4×1.5 |
10.5-12.6 |
200 |
4×2.5 |
12.0-13.7 |
260 |
4×4 |
13.5-15.1 |
360 |
4×6 |
15.7-17.7 |
458 |
4×10 |
17.4-20.2 |
670 |
4×16 |
21.4-23.1 |
1038 |
4×25 |
24.5-28.1 |
1576 |
4×35 |
28.4-31.4 |
1978 |
4×50 |
33.6-36.6 |
2765 |
4×70 |
38.8-42.5 |
3930 |
4×95 |
44.8-47.8 |
5165 |
4×120 |
50.0-53.9 |
6200 |
4×150 |
55.0-58.9 |
7537 |
4×185 |
59.0-63.3 |
9420 |
5×1.5 |
11.4-13.5 |
234 |
5×2.5 |
12.9-14.6 |
318 |
5×4 |
14.7-16.7 |
434 |
5×6 |
16.1-18.6 |
594 |
5×10 |
19.0-22.0 |
820 |
5×16 |
23.2-25.2 |
1285 |
5×25 |
28.0-31.0 |
1864 |
5×35 |
34.0-37.5 |
2675 |
7×1.5 |
12.9-14.5 |
300 |
7×2.5 |
14.9-17.4 |
458 |
12×1.5 |
15.8-17.8 |
420 |
12×2.5 |
17.3-19.6 |
580 |
18×1.5 |
18.5-20.5 |
610 |
18×2.5 |
21.2-23.4 |
900 |
24×1.5 |
20.9-23.1 |
760 |
24×2.5 |
22.8-24.8 |
1140 |
3×50/25 |
29.0-33.5 |
2510 |
3×70/35 |
34.8-37.8 |
3500 |
3×95/50 |
44.0-49.0 |
4300 |
3×120/70 |
44.7-47.7 |
5470 |
3×150/70 |
49.5-54.8 |
7000 |
3×185/95 |
54.5-58.5 |
8300 |
3×240/120 |
60.9-66.2 |
10500 |
